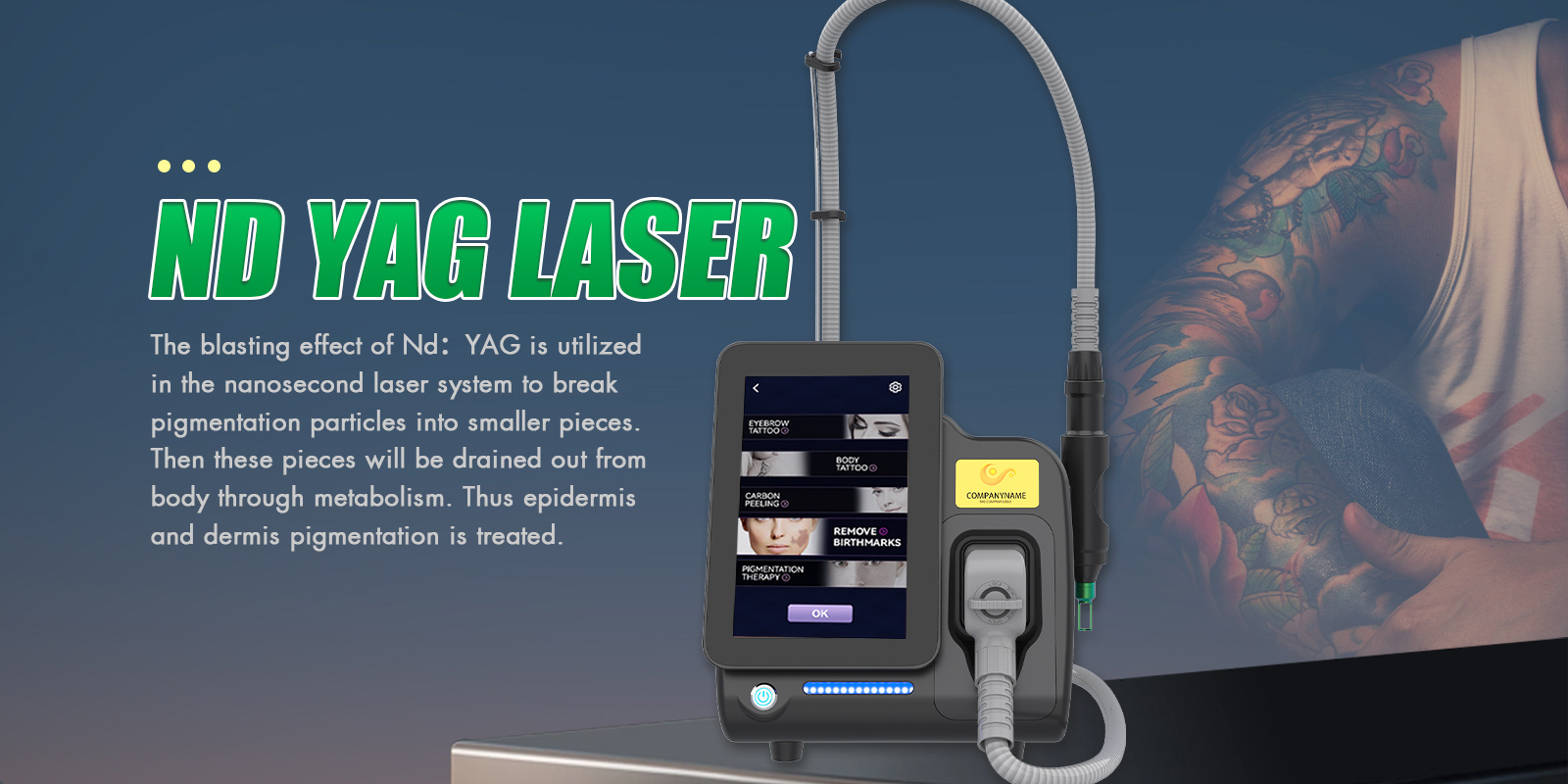

SQ-4 Portable ND YAG Tattoo Removal System
SQ-4 Nd Yag Laser Machine use 1-10HZ adjustable high frequency, 2000mj high energy, can do a good job for tattoo removal skin tightening and skin whitening.
Classification
Portable ND YAG Laser System
SQ-4 Nd Yag Laser Machine use 1-10HZ adjustable high frequency, 2000mj high energy, can do a good job for tattoo removal skin tightening and skin whitening.

Treatment Principle
01
Therapy of Epidermis and Dermis Pigmentation:
Utilizing the explosive effect of the Nd: YAG laser, the laser permeate the epidermis into the dermis which includes amount of pigment mass. Since the laser pulses in nanosecond but with super high energy, the shot pigment mass swell quickly and breaks into small pieces, which will be eliminated through metabolic system.
02
Carbon Peeling Treatment:
The 1064nm wavelength laser directly acts on the carbon cream, blasting the toner, and the toner absorbs pore oil and dirt. At the same time, the laser can stimulate the dermis to produce a large amount of collagen, thereby achieving the function of shrinking pores and whitening.

Feature
01
All color tattoo removal
02
Chloasma, coffee spots, freckles, sunburn, age spots, nevus of Ota, etc
03
Skin whitening, fine lines removal, carbon peeling treatment
04
Birthmark, pigmentation remove.

Introduction to Machine Handle
532nm: Red, orange, brown, stronger exfoliation
1064nm: black, blue, deeper penetration Carbon peeling head.
Carbon Peeling Head

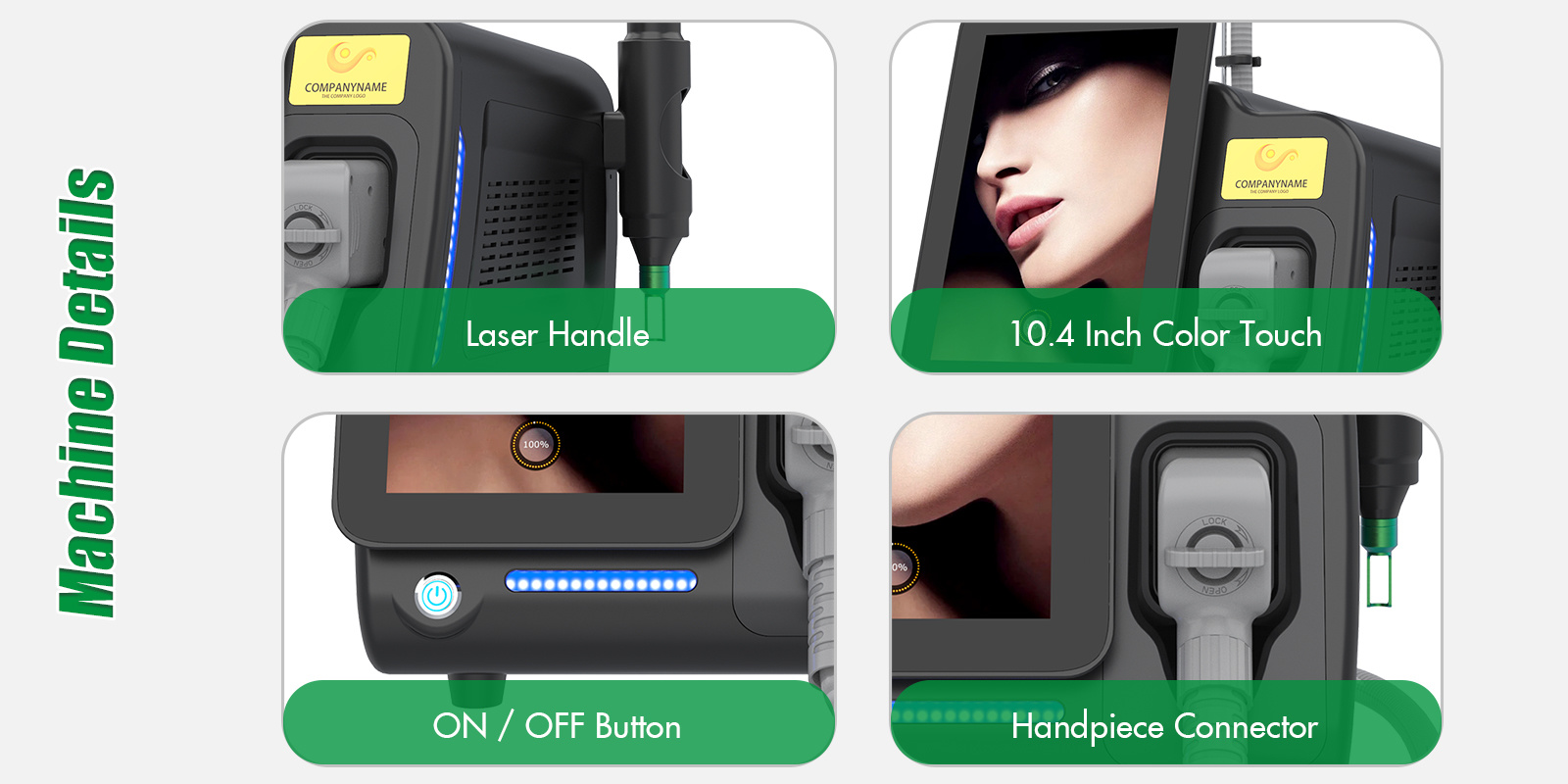

Machine Details

Advantages

Light Weight
Small size and light weight, easy to transport, saving freight costs.

High Performance
Short pulse width(4ns) High power(2000mj)Long life span

Handle Design
Cost-effective laser handle design

High Frequency
1-10HZ adjustable high frequency, eusure a fast treatment.

Color Display
Operation and parameter adjustment with 10.4 inch color TFT touch screen.

Easy To Use
Controllable spot size, easy to operate.

Precise
The laser generator is located at the handle position, which is not prone to polarization.
Specification
Type |
Q-Switch ND:Yag Laser |
Handle |
Focus head 2 (1064nm&532nm)/Carbon peeling head |
Laser wavelength |
1064nm&532nm |
Pulse width |
532nm:4ns/1064nm:4.5ns |
Energy |
100-2000mj (1064nm&532nm) |
Frequency |
1-10hz |
Screen |
10.4 inch touch color screen |
Input power |
600W |
Laser power |
300W |
Cooling system |
Air+water cooling |
Voltage |
110V±10%,60Hz /220V±10%,50Hz |
Treatment Steps

01 / Cleaning and get rid of hair on the treatment area.

02 / Disinfection of treatment site.

03 / The patient puts on a blindfold.

04 / Operator wear protective glasses.

05 / Adjusting parameters.

06 / Start treatment.

07 / It is recommended to apply a medical mask after treatment.
BEFORE & AFTER
